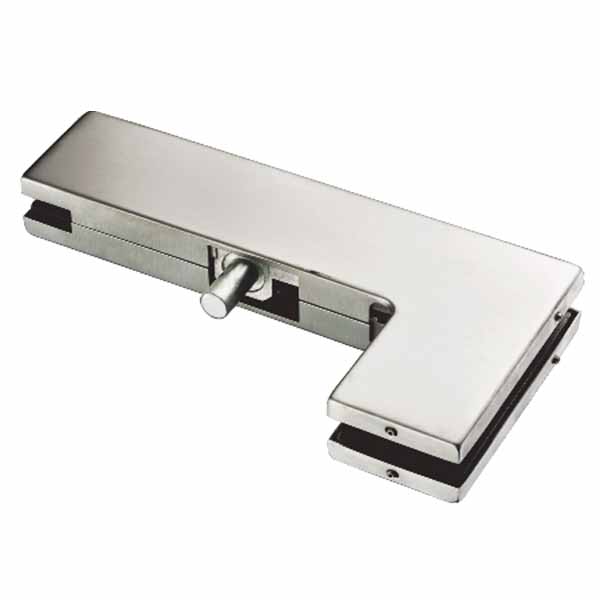

KMJ11340-Bending Patch fitting (M 401)
The decorative cover is of anti-theft design, fixed by inner hexagon screws
It can be opened from left or right. Do not differentiate left and right door;
The bottom patch cooperates with floor hinge and lower shaft; Factory standard angle is 6 ° by default.
| Features | The Decorative cover is of anti-theft design, fixed by inner hexagon screws,It can be opened from left or right.Do not differentiate left and right door |
|---|---|
| Main Material | Main body- High strength die-casting aluminium alloy |
| Decorative cover | SS304/SS316 |
| Surface Finish | Mirror /Satin |
| Maximum Bearing | 100kg |
| Application Scope | glass thickness is 10-12mm |
| Door leaf dimension | Door height≤2,600mm,Door width≤1,000mm |
Brand :
The decorative cover is of anti-theft design, fixed by inner hexagon screws
It can be opened from left or right. Do not differentiate left and right door;
The bottom patch cooperates with floor hinge and lower shaft; Factory standard angle is 6 ° by default.
| Features | The Decorative cover is of anti-theft design, fixed by inner hexagon screws,It can be opened from left or right.Do not differentiate left and right door |
|---|---|
| Main Material | Main body- High strength die-casting aluminium alloy |
| Decorative cover | SS304/SS316 |
| Surface Finish | Mirror /Satin |
| Maximum Bearing | 100kg |
| Application Scope | glass thickness is 10-12mm |
| Door leaf dimension | Door height≤2,600mm,Door width≤1,000mm |
| Features | The Decorative cover is of anti-theft design, fixed by inner hexagon screws,It can be opened from left or right.Do not differentiate left and right door |
|---|---|
| Main Material | Main body- High strength die-casting aluminium alloy |
| Decorative cover | SS304/SS316 |
| Surface Finish | Mirror /Satin |
| Maximum Bearing | 100kg |
| Application Scope | glass thickness is 10-12mm |
| Door leaf dimension | Door height≤2,600mm,Door width≤1,000mm |
