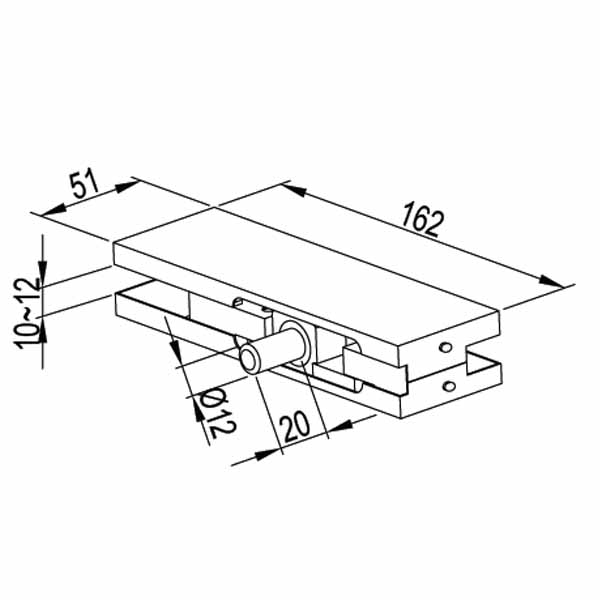

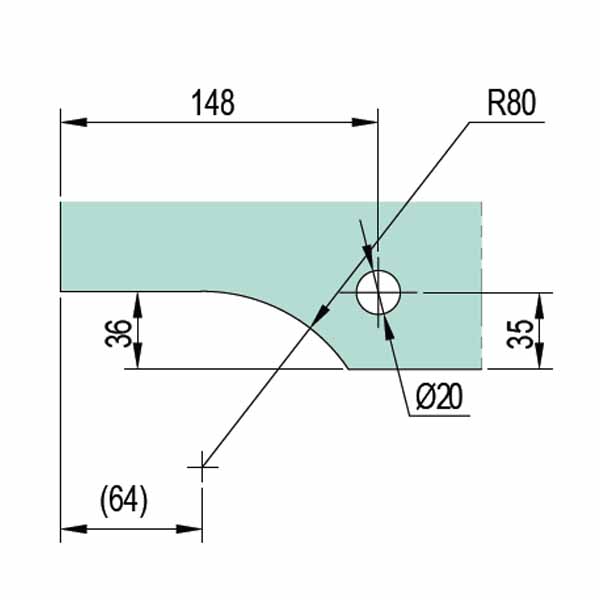

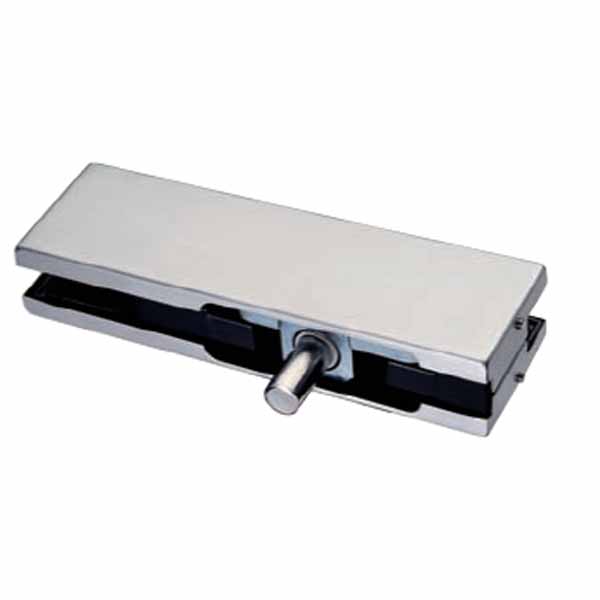

Patch fittings (M 301)

The decorative cover is of anti-theft design, fixed by inner hexagon screws;
It can be opened from left or right. Do not differentiate left and right door;
The bottom patch cooperates with floor hinge and lower shaft; Factory standard angle is 14 ° by default.


Main Material Main body-- High strength die-casting aluminum alloy
Decorative cover--SS304 Surface Finish
Mirror + Satin Maximum Bearing
100kg Application Scope
glass thickness is 10-12mm Door leaf dimension
Door height≤2,600mm Door width≤1,000mm

Brand :


The decorative cover is of anti-theft design, fixed by inner hexagon screws;
It can be opened from left or right. Do not differentiate left and right door;
The bottom patch cooperates with floor hinge and lower shaft; Factory standard angle is 14 ° by default.


Main Material Main body-- High strength die-casting aluminum alloy
Decorative cover--SS304 Surface Finish
Mirror + Satin Maximum Bearing
100kg Application Scope
glass thickness is 10-12mm Door leaf dimension
Door height≤2,600mm Door width≤1,000mm
Main Material Main body-- High strength die-casting aluminum alloy
Decorative cover--SS304 Surface Finish
Mirror + Satin Maximum Bearing
100kg Application Scope
glass thickness is 10-12mm Door leaf dimension
Door height≤2,600mm Door width≤1,000mm
